12.1 Inch TFT LCD Solution With 1280*768 Solution Support Outdoor Application
ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สกายเป้: sales10@aixton.com
หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| ชื่อ | หน้าจอแสดงผลแบบ TFT LCD ขนาด 12.1 นิ้ว | ขนาดแผง | 12.1" |
|---|---|---|---|
| ปณิธาน | 1280*768 | ความสว่าง | 1,000 (พิมพ์) |
| อัตราส่วนภาพ | 4:3 | พื้นที่ใช้งาน | 245.76*184.32มม |
| มิติเค้าร่าง | 260.5*204*8.46มม | อินเทอร์เฟซ | LVDS(1 ช่อง, 6/8 บิต) |
| เน้น | 12.1 inch high brightness LCD display,TFT LCD with 1280x768 resolution,outdoor application LCD display solution |
||
รายละเอียดสินค้า

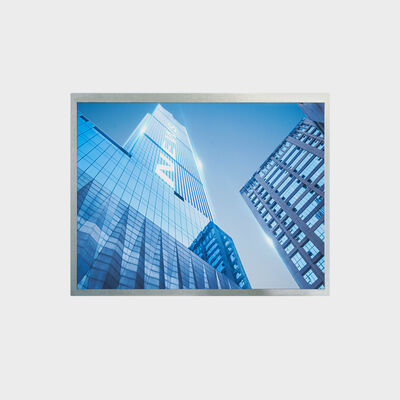

12.1 Inch TFT LCD Solution With 1280×768 Resolution Support Outdoor Application
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0121GR01-C100 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 12.1 inch |
| Brightness | 1000 nits |
| Resolution | 1280 × 768 |
| Active Area | 245.76 × 184.32 mm |
| Overall Size | 260.5 × 204 × 8.46 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:10 |
| Touch Panel | Without |
| Operating Temperature | -30°C to 80°C |
